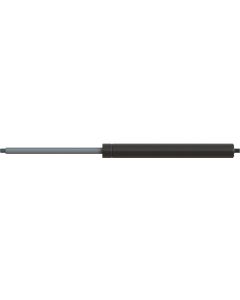

20mm Variable Force Gas Struts

Our wide range of 20MM adjustable gas struts can be used for a variety of applications.

We have a large selection of specifications available with differing lengths, diameters, and force range, so we’re sure to have what you’re looking for.

Use the diagram below as a reference where necessary. When choosing your desired variable force gas struts, please consider that the extended length will increase when adding end fittings.

Please contact us if you need any technical advice or support when choosing any of our products, and we’ll be more than happy to help.


(13 ITEMS)
Set Descending Direction
  1. NS-V-20-100 Variable Force Gas Strut
    NS-V-20-100 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 100mm
    • Extended Length: 311mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £64.13 - £91.62

  2. NS-V-20-150 Variable Force Gas Strut
    NS-V-20-150 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 150mm
    • Extended Length: 411mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £67.70 - £96.71

  3. NS-V-20-200 Variable Force Gas Strut
    NS-V-20-200 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 200mm
    • Extended Length: 511mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £69.83 - £99.76

  4. NS-V-20-250 Variable Force Gas Strut
    NS-V-20-250 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 250mm
    • Extended Length: 611mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £74.82 - £106.89

  5. NS-V-20-300 Variable Force Gas Strut
    NS-V-20-300 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 300mm
    • Extended Length: 711mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £78.39 - £111.98

  6. NS-V-20-350 Variable Force Gas Strut
    NS-V-20-350 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 350mm
    • Extended Length: 811mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £85.51 - £122.16

  7. NS-V-20-400 Variable Force Gas Strut
    NS-V-20-400 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 400mm
    • Extended Length: 911mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £91.21 - £130.30

  8. NS-V-20-450 Variable Force Gas Strut
    NS-V-20-450 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 450mm
    • Extended Length: 1011mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £99.76 - £142.52

  9. NS-V-20-500 Variable Force Gas Strut
    NS-V-20-500 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 500mm
    • Extended Length: 1111mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £110.45 - £157.79

  10. NS-V-20-600 Variable Force Gas Strut
    NS-V-20-600 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 600mm
    • Extended Length: 1311mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £134.68 - £192.40

  11. NS-V-20-700 Variable Force Gas Strut
    NS-V-20-700 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 700mm
    • Extended Length: 1511mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £142.52 - £203.60

  12. NS-V-20-800 Variable Force Gas Strut
    NS-V-20-800 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 800mm
    • Extended Length: 1711mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £160.34 - £229.05

  13. NS-V-20-900 Variable Force Gas Strut
    NS-V-20-900 Variable Force Gas Strut

    SPECIFICATIONS AVAILABLE

    • Stroke: 900mm
    • Extended Length: 1911mm
    • Rod Diameter: 20mm
    • Body Diameter: 40mm
    • Force Range: 300 - 5000N

    Price Range:
    £178.15 - £254.50
