1101 Black PA Swing Handle with 4mm Double Bit Insert

Only %1 left
SKU
1101-1P02
More Information
Lock Types Double Bit 4mm
Colour/Finish Black
Material Nylon 6 GF30

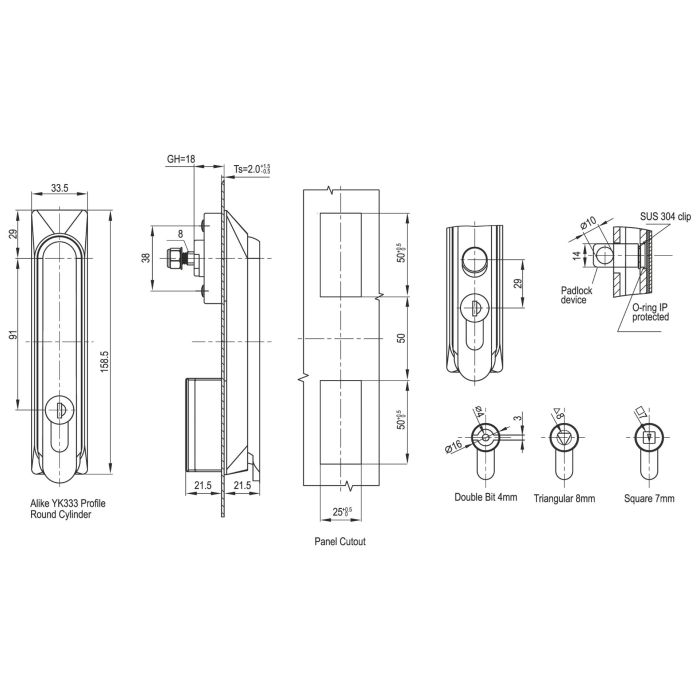

Panel Cutout 25x50mm
Panel Thickness 1.5 - 3.5mm
Barrel Height 18mm
IP Rating IP65
Cam Option Range available
Model 1101
Hardware Datasheets
Catalogues
BASIC PRICE £16.22
All prices exclude VAT

- UV resistance up to 1000 hours

- UL94 V-0 flame retardant

- Universal panel cut out

- Guaranteed 1 year

Metrol Springs
1101-1P02
/media/catalog/product/1/1/1101-1p02-c.jpg
  • Product code
    Product Description
    Stock Status
  • 1101-1P02-C
    Shutter: Yes
  • 1101-1P02-NC
    Shutter: No
  • 9100-0606
  • 9100-0608
  • 9100-0610
  • 9100-0613
  • 9100-0614
  • 9100-0616
  • 9100-0618
  • 9100-0620
  • 9100-0622
  • 9100-0624
  • 9100-0626
  • 9100-0628
  • 9100-0630
  • 9100-0635
  • 9100-0638
  • 9100-0640
  • 9100-0642
  • 9100-0644
  • 9100-0402
  • 9100-0404
  • 9100-0406
  • 9100-0408
  • 9100-0410
  • 9100-0413
  • 9100-0414
  • 9100-0416
  • 9100-0418
  • 9100-0420
  • 9100-0422
  • 9100-0424
  • 9100-0425
  • 9100-0426
  • 9100-0428
  • 9100-0430
  • 9100-0432
  • 9100-0434
  • 9100-0435
  • 9100-0436
  • 9100-0438
  • 9100-0440
  • 9100-0442
  • 9100-0444
  • 9100-0445
  • 9100-0447
  • 9100-0450
  • 9100-0453
  • 9100-0455
  • 9100-9604
  • 9100-9606
  • 9100-9608
  • 9100-9610
  • 9100-9613
  • 9100-9614
  • 9100-9616
  • 9100-9618
  • 9100-9620
  • 9100-9622
  • 9100-9624
  • 9100-9625
  • 9100-9626
  • 9100-9628
  • 9100-9630
  • 9100-9632
  • 9100-9634
  • 9100-9635
  • 9100-9636
  • 9100-9638
  • 9100-9640
  • 9100-9642
  • 9100-9644
  • 9100-9645
  • 9100-9647
  • 9100-9650
  • 9200-55-015-20
  • 9200-80-015-20
  • 9200-55-015-30
  • 9200-80-015-30
