Swing handle locks
Metrol Motion Control prides itself in manufacturing these high-quality swing handle locks.
Swing handle locks are an effective way to upgrade your door security by adding increased tamper resistance. Swing handle locks are commonly installed for increased security but also with subtlety. These locks are popular with electrical switchboards, server rooms, service vehicles and motor homes.
At Metrol, we offer various designs, materials, finishes and locking functions to ensure that our customers find the perfect choice they've been looking for.
Please consider downloading our online catalogue for more information on the products below for our complete selection.
-

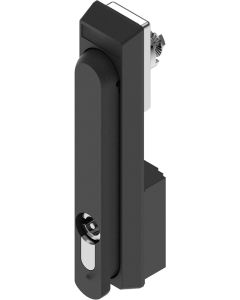

1100 Black Powder Coated Padlockable Swing Ha ...
SPECIFICATIONS AVAILABLE
- Lock Types: Key Locking 333 (KEY333 Profile, Keys supplied)
- Colour/Finish: Black Powder Coated
- Material: Zinc Die, Zinc Die Body
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£17.85 - £28.25 -
1100 Black Powder Coated Swing Handle with 4m ...
SPECIFICATIONS AVAILABLE
- Lock Types: Double Bit 4mm
- Colour/Finish: Black Powder Coated
- Material: SS304 Shaft, Zinc Die, Zinc Die Body
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£21.30 - £26.78 -
1100 Black Powder Coated Swing Handle with 7m ...
SPECIFICATIONS AVAILABLE
- Lock Types: Square 7mm
- Colour/Finish: Black Powder Coated
- Material: SS304 Shaft, Zinc Die, Zinc Die Body
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£21.30 - £26.78 -
1100 Black Powder Coated Swing Handle with 8m ...
SPECIFICATIONS AVAILABLE
- Lock Types: Triangle 8mm
- Colour/Finish: Black Powder Coated
- Material: SS304 Shaft, Zinc Die, Zinc Die Body
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£21.30 - £26.78 -
1100 Black Powder Coated Swing Handle with Ke ...
SPECIFICATIONS AVAILABLE
- Lock Types: Key Locking 333 (KEY333 Profile, Keys supplied)
- Colour/Finish: Black Powder Coated
- Material: SS304 Shaft, Zinc Die, Zinc Die Body
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£21.30 - £26.78 -
1101 4mm Double Bit Black PA Padlockable Swin ...
SPECIFICATIONS AVAILABLE
- Lock Types: Double Bit 4mm
- Colour/Finish: Black
- Material: Nylon 6 GF30
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£7.72 - £12.22 -
1101 Black PA Swing Handle with 4mm Double Bi ...
SPECIFICATIONS AVAILABLE
- Lock Types: Double Bit 4mm
- Colour/Finish: Black
- Material: Nylon 6 GF30
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£7.72 - £15.27 -
1101 Black PA Swing Handle with 7mm Square In ...
SPECIFICATIONS AVAILABLE
- Lock Types: Square 7mm
- Colour/Finish: Black
- Material: Nylon 6 GF30
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£15.23 - £15.27 -
1101 Black PA Swing Handle with 8mm Triangle ...
SPECIFICATIONS AVAILABLE
- Lock Types: Triangle 8mm
- Colour/Finish: Black
- Material: Nylon 6 GF30
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£15.23 - £15.27 -
1101 Black PA Swing Handle with Key Locking 3 ...
SPECIFICATIONS AVAILABLE
- Lock Types: Key Locking 333 (KEY333 Profile, Keys supplied)
- Colour/Finish: Black
- Material: Nylon 6 GF30
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£12.03 - £15.27 -
1101 Black PA Swing Handle with KEY333
SPECIFICATIONS AVAILABLE
- Lock Types: Key Locking 333 (Keys supplied)
- Colour/Finish: Black
- Material: Mild Steel Zinc Plated Fixing Components, Nylon 6 GF30, Nylon 6 GF30 Body, SS304 Shaft
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- Barrel Height: 18mm
- IP Rating: IP65
- Security Type: Key Locking
- Cam Option: Range available
Price Range:
£9.62 - £15.27 -
1101-2 Black PA Swing Handle with 2P Rod Cont ...
SPECIFICATIONS AVAILABLE
- Lock Types: Key Locking 333 (Keys supplied)
- Colour/Finish: Black
- Material: Mild Steel Zinc Plated Flat Rod, Nylon 6 GF30, Nylon 6 GF30 Body, SS304 Shaft, Zinc Die Rod Control
- Panel Cutout: 25x50mm
- Panel Thickness: 1.5 - 3.5mm
- IP Rating: IP65
- Security Type: Key Locking
Price Range:
£14.56 - £23.36 -
1102 Key Locking KEY333 Black Swing handle wi ...
SPECIFICATIONS AVAILABLE
- Lock Types: Key Locking 333 (Keys supplied)
- Colour/Finish: Black
- Material: Nylon 6 GF30
- Panel Cutout: 25x50mm
- Panel Thickness: 2mm
- Barrel Height: 16mm
- IP Rating: IP54
- Security Type: Key Locking
- Cam Option: Range available
Price Range:
£14.00 - £22.16 -

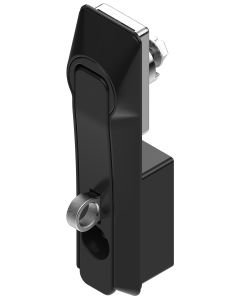

1103 Black Padlockable Swing Handle with 8mm ...
SPECIFICATIONS AVAILABLE
- Lock Types: Triangle 8mm
- Colour/Finish: Black Powder Coated
- Material: Zinc Die
- Panel Cutout: 25x50mm
- Panel Thickness: 1 - 3mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£7.93 - £13.81 -
1103 Black Padlockable Swing Handle with Key ...
SPECIFICATIONS AVAILABLE
- Lock Types: Key Locking 333 (Keys supplied)
- Colour/Finish: Black E-Coated, Black Powder Coated
- Material: Zinc Die
- Panel Cutout: 25x50mm
- Panel Thickness: 1 - 3mm
- Barrel Height: 18mm
- IP Rating: IP65
- Cam Option: Range available
Price Range:
£7.63 - £13.81 -

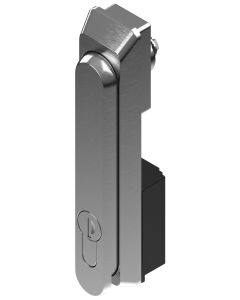

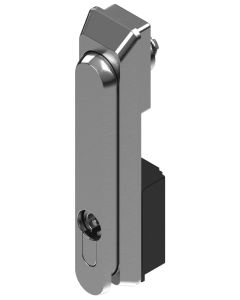

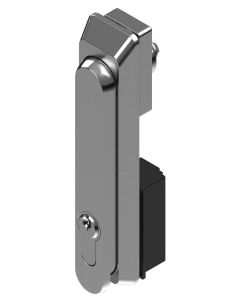

1120 Stainless Steel 304 Swing Handle with Du ...
SPECIFICATIONS AVAILABLE
- Lock Types: Double Bit 4mm, HS8 Profile, Key Locking 333 (KEY333 Profile, Keys supplied), Square 7mm
- Colour/Finish: Polished
- Material: Nylon 6 GF30 Rear Cap, SS304 Body, SS304 Shaft, Stainless Steel 304
- Panel Cutout: 25x50mm
- Panel Thickness: 2mm
- Barrel Height: 18mm
- IP Rating: IP65
- Security Type: Key Locking
Price Range:
£42.38 - £83.84 -
1201 Black PA Swing Handle
SPECIFICATIONS AVAILABLE
- Lock Types: Key Locking 333 (Keys supplied)
- Colour/Finish: Black
- Material: Mild Steel Zinc Plated Fixing Components, Nylon 6 GF30, Nylon 6 GF30 Body, SS304 Shaft, Zinc Die Bod...
- Panel Cutout: 25x50mm, 25x150mm
- Panel Thickness: 1 - 3mm
- Barrel Height: 18mm, 20mm
- IP Rating: IP65
- Security Type: Key Locking
- Cam Option: Range available
Price Range:
£14.26 - £30.35 -
1201 Black PA Swing Handle with 3 Digit Combi ...
SPECIFICATIONS AVAILABLE
- Lock Types: Key Locking 333 (Keys supplied)
- Colour/Finish: Black
- Material: Mild Steel Zinc Plated Fixing Components, Nylon 6 GF30, Nylon 6 GF30 Body, SS304 Shaft
- Panel Cutout: 25x50mm
- Panel Thickness: 1 - 3mm
- Barrel Height: 18mm
- IP Rating: IP65
- Security Type: Combination, Key Locking
- Cam Option: Range available
Price Range:
£12.31 - £19.48 -
1201-02 Small Black PA Swing Handle
SPECIFICATIONS AVAILABLE
- Lock Types: Key Locking 333 (Keys supplied)
- Colour/Finish: Black
- Material: Mild Steel Zinc Plated Fixing Components, Nylon 6 GF30, Nylon 6 GF30 Body, SS303 Shaft, Zinc Die, Zi...
- Panel Cutout: 25x110mm
- Panel Thickness: 1 - 3mm
- Barrel Height: 20mm
- IP Rating: IP65
- Security Type: Key Locking
- Cam Option: Range available
Price Range:
£9.88 - £17.69 -
1205 Stainless Steel Padlockable Swing Handle ...
SPECIFICATIONS AVAILABLE
- Colour/Finish: Polished
- Material: Stainless Steel 304, Stainless Steel 316
- Panel Cutout: Ø22.5 + Ø8.5
- Panel Thickness: 1.5 - 6mm
- Barrel Height: 18mm
- IP Rating: IP65
Price Range:
£34.10 - £74.03
High-Quality Custom Swing Handle Locks
The unique feature of swing handle locks is their ability to leverage an internal cam, whether a one-point or multiple point cam. Additionally, the inherent ergonomic designs of these locks will prevent physical stress from causing damage over time and ensure your locks last much longer.
You can choose between our standard key locking swing handle locks or explore the benefits of our other locks, such as our double-bit locks - perfect for wooden doors. Additionally, we can provide enhanced security options with combined key and combination code locks and even electronic ones for those vulnerable areas.
Our electronic swing handle locks are the ultimate in tamper resistance locking. They come with a backup mechanical key lock and combination lock alongside a remote-control locking system that can be configured as wired or wireless, depending on your requirements.
With our extensive range of both stock and custom swing handle locks, we’re confident that we have the right component for you. If you'd like any technical support before you place your order of swing handle locks with us, feel free to call us on 01604 499332 during office hours. Alternatively, you can use our enquiry form, and a company representative will reply within 48 hours. For any enquiries from Northern Ireland or the Republic of Ireland, please email us at [email protected].
