Captive Flange Mounts
Minimum order value of £15+VAT.
Our Motion Control Division supplies a selection of high-quality captive flange mounts as part of our extensive range of effective anti-vibration mounts. These cost-effective choices come in a range of materials and finishes and with variable hole spacing and maximum force. Use the filter on the left to screen the options to your specific needs. Additionally, you can download our complete AVM catalogue to review the specifications of our stock captive flange mounts.
-
M10 Oval Flange with Fail Safe 60 ShoreSPECIFICATIONS AVAILABLE
- Diameter (D⌀): 60mm, 77mm, 82mm
- Height (H): 30mm, 31mm, 35mm
- Thread: M10
- Hole Spacing: 75-90mm, 110mm
- Length: 106mm, 128mm
- Maximum Force: 212daN, 280daN, 345daN
Price Range:
£41.19 - £70.46 -
M12 Oval Flange with Fail Safe 60 ShoreSPECIFICATIONS AVAILABLE
- Diameter (D⌀): 60mm, 92mm, 106mm
- Height (H): 31mm, 38mm, 45mm
- Thread: M12
- Hole Spacing: 75-90mm, 110mm, 138-146mm
- Length: 106mm, 138mm, 172mm
- Maximum Force: 212daN, 585daN, 660daN
Price Range:
£41.19 - £86.42 -
M16 Oval Flange with Fail Safe 60 ShoreSPECIFICATIONS AVAILABLE
- Diameter (D⌀): 108mm, 121mm, 144mm
- Height (H): 42mm, 48mm, 50mm
- Thread: M16
- Hole Spacing: 158mm, 160mm, 186mm
- Length: 188mm, 190mm, 216mm
- Maximum Force: 660daN, 760daN, 1340daN
Price Range:
£64.81 - £123.80 -

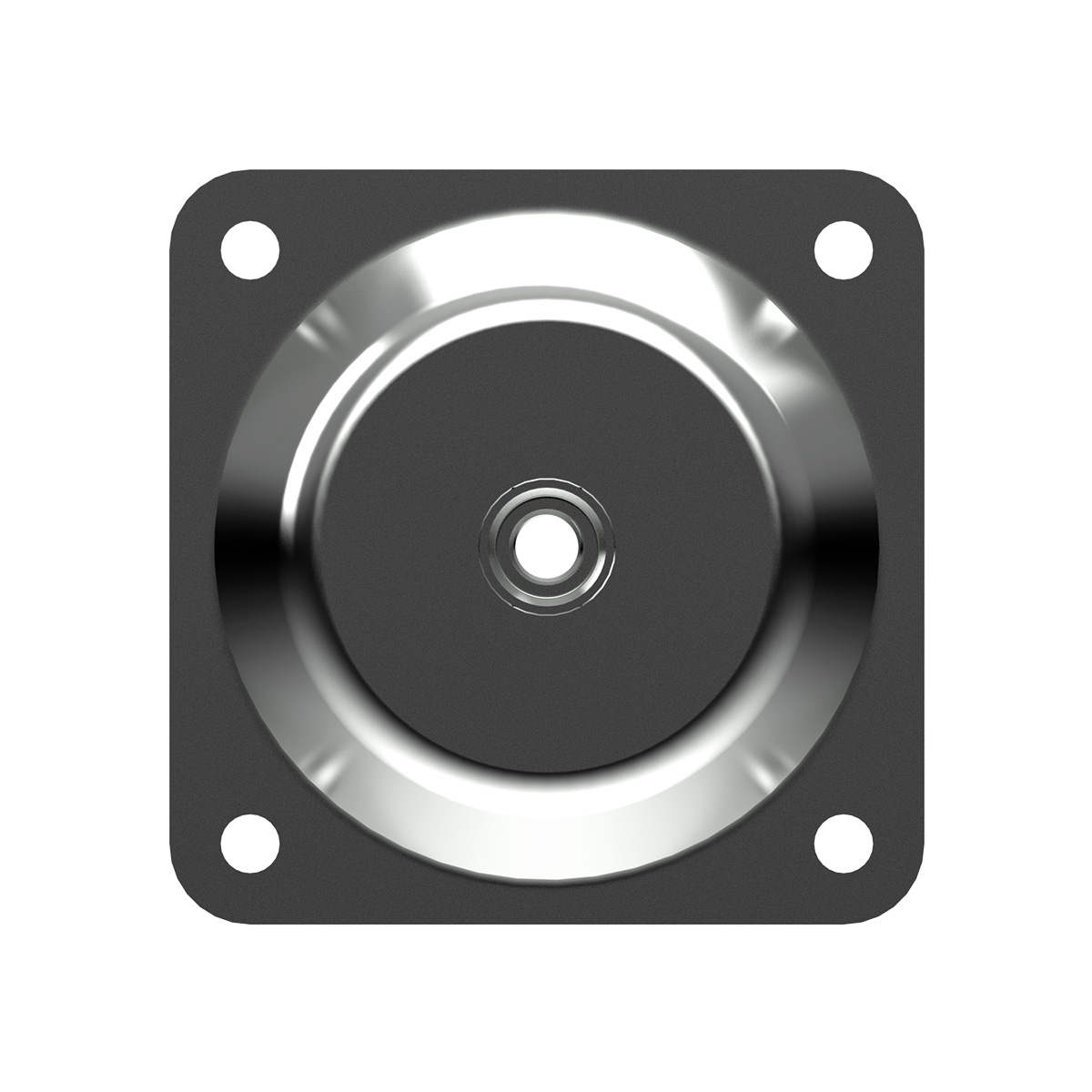

M16 Square Flange with Fail Safe 60 ShoreSPECIFICATIONS AVAILABLE
- Diameter (D⌀): 150mm
- Height (H): 51mm
- Thread: M16
- Hole Spacing: 132mm
- Length: 168mm
- Maximum Force: 880daN
Price Range:
£127.42 - £169.89 -
M20 Square Flange with Fail Safe 60 ShoreSPECIFICATIONS AVAILABLE
- Diameter (D⌀): 177mm
- Height (H): 62.4mm
- Thread: M20
- Hole Spacing: 150mm
- Length: 184mm
- Maximum Force: 1326daN
Price Range:
£148.84 - £198.45
High-Quality Flange Mounts
Captive flange mounts are designed failsafe to prevent excessive movement of the equipment it is attached to. This integral overload protection is effective for both static and mobile applications at limiting any movement and giving peace of mind regarding the condition of your valuable equipment.
Available in square and oval designs, these captive flanges are an efficient choice that is guaranteed to provide a high level of performance after an easy installation. Their design provides peak performance for vibration isolation through shear compression and will reduce vibration amount by up to 95%. In addition, the metal design offers superior protection from harmful contaminants such as chemical and weather exposure, whilst the rubber comes with effective heat and oil resistance to provide a reliable AVM.
Flange Mount Manufacturer
We at Metrol are confident that we have the AVM solution perfect for your needs. Each captive flange mount page contains additional information regarding their specifications and capabilities, including detailed CAD files to assist with any machine designs you require.
If you'd like any technical support before you order with us, feel free to call us on 01604 499332 during office hours. Alternatively, you can use our enquiry form, and a company representative will reply within 48 hours. For any enquires from Nothern Ireland or the Republic of Ireland, please email us at [email protected]
