Heavy Duty Drawer Runners - From 100kg, 500kg +
Our Accuride heavy-duty draw slides are suitable for heavy loads from 100kg, 500kg and more. They can be ordered with a variety of features, including:
- Corrosion resistance - which allows for better outdoor storage solutions
- Two-way travel - to make full use of an area
- Disconnect - so that your drawers can be removed entirely from the unit
- Hold in - to prevent roll-out or bounce back of drawers
- Soft close - to ensure our drawer cabinets don't get damaged or cause a loud bang when closed
- Lock-in & lock-out - options that allow for a variety of different applications
The slide's ball bearings mean that the drawer can move back and forth in a smooth, almost frictionless motion. The mechanisms work by attaching the two mating slide pieces to the drawer, which allows the drawer to slide or rest on the cabinet.
-
Accuride DZ0522 Heavy Duty, Telescopic Drawer ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 150Kg, 180Kg
- Slide Lengths: 457mm, 600mm, 900mm
- Extension: 100% +
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 95.5mm
- Thickness: 26.5mm
- Sold as: Individually
Price Range:
£97.20 - £301.97 -

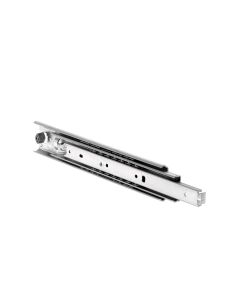

Accuride DZ3607 Drawer Runners and Slides wit ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 83Kg, 90Kg, 92Kg, 100Kg, 110Kg, 120Kg
- Slide Lengths: 305mm, 356mm, 406mm, 457mm, 508mm, 559mm, 610mm, 660mm, 711mm
- Features: Disconnect, Lock Out
- Extension: 100%
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 53.1mm
- Thickness: 19.1mm
- Sold as: Pairs
Price Range:
£37.70 - £108.64 -
Accuride DZ3657 Drawer Runners and Slides wit ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 83Kg, 90Kg, 92Kg, 100Kg, 110Kg, 124Kg
- Slide Lengths: 305mm, 356mm, 406mm, 457mm, 508mm, 559mm, 610mm, 660mm, 711mm
- Features: Disconnect
- Extension: 100%
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 53.1mm
- Thickness: 19.1mm
- Sold as: Pairs
Price Range:
£32.07 - £75.15 -

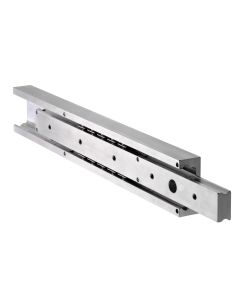

Accuride DA4120 Aluminium, Telescopic Drawer ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 460Kg, 480Kg, 490Kg, 500Kg, 510Kg, 520Kg, 530Kg, 540Kg, 550Kg
- Slide Lengths: 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm
- Features: Corrosion Resistance
- Extension: 75%
- Finish: Aluminium (DA)
- Height: 80mm
- Thickness: 36mm
- Sold as: Individually
Price Range:
£224.12 - £853.63 -
Accuride DA4140 Aluminium, Heavy Duty, Telesc ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 540Kg, 550Kg, 555Kg, 560Kg, 570Kg, 575Kg, 580Kg, 590Kg, 600Kg
- Slide Lengths: 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1500mm
- Features: Corrosion Resistance
- Extension: 100%
- Finish: Aluminium (DA)
- Height: 150mm
- Thickness: 38mm
- Sold as: Individually
Price Range:
£335.57 - £1,656.20 -
Accuride DA4160 Aluminium, Heavy Duty, Telesc ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 230Kg, 240Kg, 250Kg, 255Kg, 270Kg, 285Kg, 290Kg, 295Kg, 300Kg
- Slide Lengths: 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 800mm, 900mm, 1000mm
- Features: Corrosion Resistance
- Extension: 100%
- Finish: Aluminium (DA)
- Height: 80mm
- Thickness: 26.5mm
- Sold as: Pairs
Price Range:
£199.21 - £561.62 -
Accuride DA4165 Aluminium Drawer Runners and ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 205Kg, 210Kg, 225Kg, 245Kg, 250Kg, 270Kg
- Slide Lengths: 422mm, 522mm, 622mm, 722mm, 822mm, 922mm, 1022mm
- Features: Corrosion Resistance
- Extension: 100%, Two Way Travel
- Finish: Aluminium (DA)
- Height: 80mm
- Thickness: 26.5mm
- Sold as: Pairs
Price Range:
£272.34 - £673.96 -
Accuride DS5321 Stainless Steel 304, Telescop ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 100Kg, 130Kg, 140Kg, 150Kg, 160Kg, 170Kg, 180Kg
- Slide Lengths: 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 790mm
- Features: Corrosion Resistance
- Extension: 100% +
- Finish: Stainless Steel 304 (DS)
- Height: 53.1mm
- Thickness: 19.1mm
- Sold as: Pairs
Price Range:
£48.59 - £146.37 -
Accuride DS5321EC Stainless Steel 304 Drawer ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 65Kg, 70Kg, 85Kg, 90Kg, 100Kg
- Slide Lengths: 400mm, 450mm, 500mm, 550mm, 600mm, 700mm, 800mm
- Features: Soft Close (EC), Corrosion Resistance
- Extension: 100%
- Finish: Stainless Steel 304 (DS)
- Height: 53mm
- Thickness: 19.1mm
- Sold as: Pairs
Price Range:
£88.39 - £201.20 -
Accuride DZ4180 Drawer Runners and Slides sup ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 410Kg, 434Kg, 458Kg, 482Kg, 506Kg, 530Kg, 554Kg, 578Kg, 602Kg, 626Kg, 650Kg, 674Kg, 698Kg, 722Kg, 74...
- Slide Lengths: 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm, 1050mm, 1100mm, 1150mm...
- Extension: 100%
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 80mm
- Thickness: 35mm
- Sold as: Individually
Price Range:
£392.54 - £1,172.59 -
Accuride DZ5321 Drawer Runners and Slides Fea ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 70Kg, 80Kg, 90Kg, 100Kg, 130Kg, 140Kg, 150Kg, 160Kg
- Slide Lengths: 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 700mm, 790mm, 900mm, 1000mm, 1100mm
- Features: Hold In
- Extension: 100% +
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 53.1mm
- Thickness: 19.1mm
- Sold as: Pairs
Price Range:
£27.16 - £183.04 -
Accuride DZ5321-60 Drawer Runners and Slides ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 100Kg, 105Kg, 107Kg, 110Kg, 115Kg, 120Kg
- Slide Lengths: 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 700mm, 790mm
- Features: Hold In
- Extension: 100% +
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 53.1mm
- Thickness: 20.7mm
- Sold as: Pairs
Price Range:
£27.47 - £71.05 -
Accuride DZ5321EC Drawer Runners and Slides w ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 65Kg, 70Kg, 75Kg, 80Kg, 85Kg, 90Kg, 100Kg
- Slide Lengths: 400mm, 450mm, 500mm, 550mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm
- Features: Soft Close (EC)
- Extension: 100%
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 53.1mm
- Thickness: 19.1mm
- Sold as: Pairs
Price Range:
£45.95 - £190.76 -
Accuride DZ5321SC Drawer Runners and Slides w ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 50Kg, 70Kg, 85Kg, 90Kg, 100Kg, 110Kg, 120Kg
- Slide Lengths: 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 700mm, 790mm
- Features: Self Close (SC), Hold In
- Extension: 100% +
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 53.1mm
- Thickness: 19.1mm
- Sold as: Pairs
Price Range:
£33.27 - £82.33 -
Accuride DS5322 Stainless Steel 304, Telescop ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 50Kg, 70Kg, 80Kg, 90Kg, 100Kg, 110Kg, 120Kg
- Slide Lengths: 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 700mm, 790mm
- Features: Hold In, Corrosion Resistance
- Extension: 100% +
- Finish: Stainless Steel 304 (DS)
- Height: 53.1mm
- Thickness: 20.7mm
- Sold as: Pairs
Price Range:
£65.94 - £156.10 -
Accuride DZ5343 Drawer Runners and Slides Fea ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 70Kg, 80Kg, 85Kg, 90Kg, 95Kg, 100Kg
- Slide Lengths: 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm
- Features: Hold In, Anti-Tilt / Interlock
- Extension: 100%
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 53.1mm
- Thickness: 19.1mm
- Sold as: Individually
Price Range:
£20.05 - £40.16 -
Accuride DZ5344 Drawer Runners and Slides wit ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 70Kg, 80Kg, 85Kg, 90Kg, 95Kg, 100Kg
- Slide Lengths: 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm
- Features: Hold In
- Extension: 100%
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 53.1mm
- Thickness: 19.1mm
- Sold as: Individually
Price Range:
£14.38 - £31.45 -
-
Accuride DZ5417 Drawer Runners and Slides Fea ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 90Kg, 92Kg, 94Kg, 95Kg, 100Kg
- Slide Lengths: 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm
- Features: Hold In
- Extension: 100% +
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 54mm
- Thickness: 17.5mm
- Sold as: Pairs
Price Range:
£26.90 - £63.94 -
Accuride DZ6026 Drawer Runners and Slides wit ...SPECIFICATIONS AVAILABLE
- Available Load Ratings: 80Kg, 85Kg, 90Kg, 95Kg, 100Kg
- Slide Lengths: 300mm, 350mm, 400mm, 450mm, 500mm, 550mm
- Extension: 75%, Two Way Travel
- Finish: Zinc Plate & Blue Passivate (DZ)
- Height: 71.5mm
- Thickness: 12.5mm
- Sold as: Pairs
Price Range:
£34.56 - £68.76
Metrol Offer a Wide Range of Heavy-Duty Drawer Slides
With our range of Accuride heavy-duty drawer slides, you can choose from several different load ratings depending on the weight you require. The load ratings of our slides vary between 50kg and 600kg. When fitting heavy-duty drawer tracks, you should account for clearance on each side of the drawer. Most heavy-duty side mount drawer slides will need at least 1/2 to 17/32 inches on either side, and each drawer should be 1 to 1-1/16 inches smaller than the opening to fit. When choosing your heavy-duty drawer runner, you need to ensure the length of the runner is suitable for your application. Our runners offer slide lengths of between 254mm to 1110mm, meaning they are ideal for a huge range of demanding applications.
Drawer Runners for a variety of applications
Due to the nature of these products, they are perfect for use in several applications, both domestic and commercial. Common uses include:
- Commercial Kitchen storage
- Warehouse machinery
- Emergency vehicle storage
- Retail display shelves
- Industrial workstations
- Garages
- Under stair storage solutions
The majority of our heavy-duty drawer slides offer a fully extendable reach, meaning that everything you store within the drawers becomes accessible. Our range includes stainless steel, aluminium and zinc plating finishes, providing functionality and aesthetic appeal. Stainless steel and aluminium offer fantastic corrosion resistance and are perfect for more demanding environments, especially those open to the elements. The steel thickness of these runners makes bearing the load easy, and some of our products offer thicknesses of up to 36mm.
Our slides can be purchased either as individuals or pairs and are available to buy as a single unit or in bulk. We supply optional brackets with some heavy-duty slides, allowing for added support. In addition, our full range of Accuride Drawer Runners includes runners with applicability for smaller loads, so if your project involves lower load ratings, take a look at our light and medium-duty drawer runners.
Order Heavy-Duty Drawer Slides Online Today at Metrol
When you order heavy-duty drawer runners online from Metrol, you can benefit from Next Day delivery, providing the products are in stock and ordered before 3pm, or you can choose Express Delivery which will guarantee delivery before 12pm the next day (working days only). We also ship internationally, and your courier will be DPD for domestic or international shipping.
If you have any questions or require more information about what load ratings you might need for your heavy-duty drawer runners or which feature is suitable for your application, our team is on hand to help. Give us a call on 01604 499332, and we can advise on the best product for you.
