M10 Female Female Bobbins 55 Shore

Only %1 left
SKU
AVM-FFB-M10
More Information

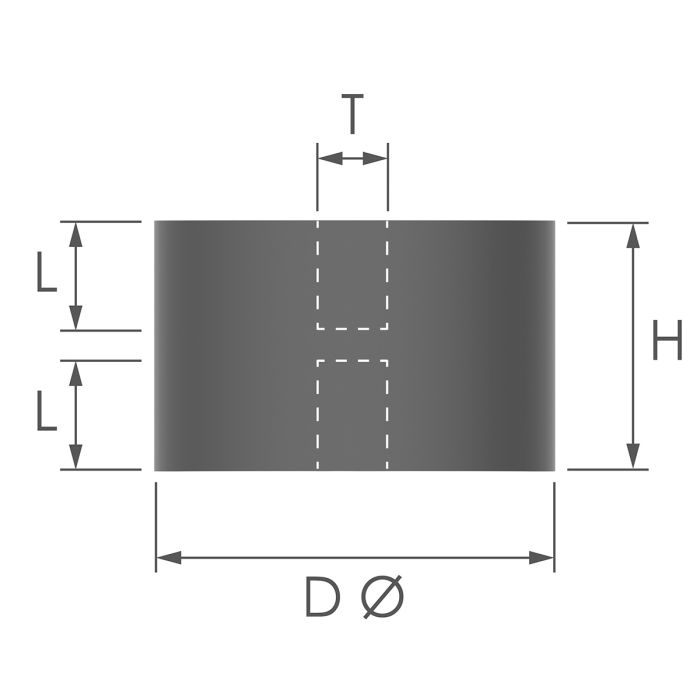

Diameter (D⌀) 40mm, 50mm, 60mm, 70mm
Height (H) 30mm, 35mm, 40mm, 45mm, 50mm, 60mm
Thread (T) M10
Thread Length (L) 10mm
Catalogues
BASIC PRICE £4.36
All prices exclude VAT
Metrol Springs
AVM-FFB-M10
/media/catalog/product/f/f/ffb_iso_right_5.jpg
  • Product code
    Product Description
    Stock Status
  • AVM-FFB-4030-M1010-55
    Diameter: 40mm, Height: 30mm, Thread Length: 10mm
  • AVM-FFB-5030-M1010-55
    Diameter: 50mm, Height: 30mm, Thread Length: 10mm
  • AVM-FFB-5040-M1010-55
    Diameter: 50mm, Height: 40mm, Thread Length: 10mm
  • AVM-FFB-5045-M1010-55
    Diameter: 50mm, Height: 45mm, Thread Length: 10mm
  • AVM-FFB-5050-M1010-55
    Diameter: 50mm, Height: 50mm, Thread Length: 10mm
  • AVM-FFB-5060-M1010-55
    Diameter: 50mm, Height: 60mm, Thread Length: 10mm
  • AVM-FFB-6030-M1010-55
    Diameter: 60mm, Height: 30mm, Thread Length: 10mm
  • AVM-FFB-6040-M1010-55
    Diameter: 60mm, Height: 40mm, Thread Length: 10mm
  • AVM-FFB-7045-M1010-55
    Diameter: 70mm, Height: 45mm, Thread Length: 10mm
  • AVM-FFB-7050-M1010-55
    Diameter: 70mm, Height: 50mm, Thread Length: 10mm
  • AVM-FFB-7035-M1010-55
    Diameter: 70mm, Height: 35mm, Thread Length: 10mm
  • AVM-FFB-M10
