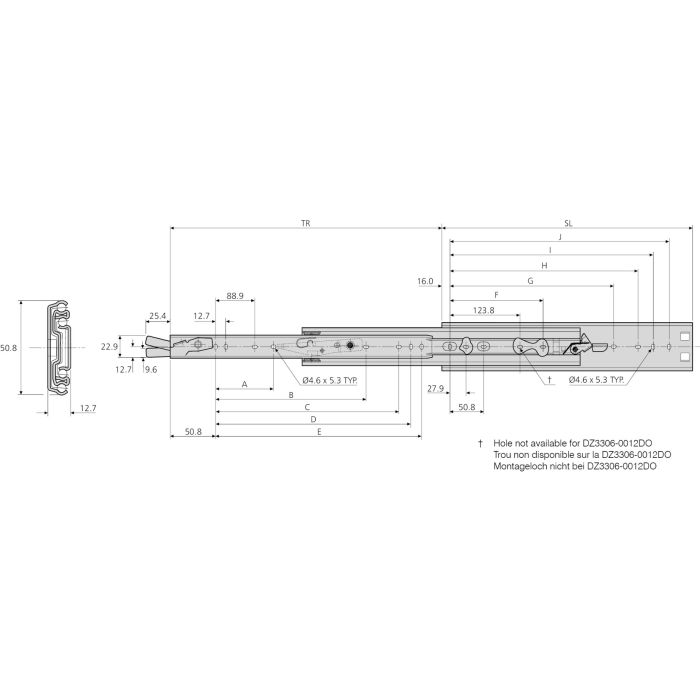

Accuride DZ3306DO Drawer Runners and Slides with Lock In, Hold Out and Lever Disconnect Features
Only %1 left
SKU
DZ3306DO
| Available Load Ratings | 55Kg, 58Kg, 61Kg, 64Kg, 66Kg, 67Kg, 68Kg |
|---|---|
| Slide Lengths | 305mm, 356mm, 406mm, 457mm, 508mm, 559mm, 610mm, 660mm, 711mm |
| Travel Range | 330mm, 381mm, 432mm, 483mm, 533mm, 584mm, 635mm, 686mm, 737mm |
| Flat Mounting | Suitable for Flat Mounting |
| Features | Hold Out (DO), Disconnect, Lock In |
| Extension | 100% + |
| Finish | Zinc Plate & Blue Passivate (DZ) |
| Height | 50.8mm |
| Thickness | 12.7mm |
| Brackets | Optional Screw In |
| Fixings Included | No |
| Model Series | 3306 |
BASIC PRICE
£109.95
All prices exclude VAT
-
Product codeProduct DescriptionStock Status
-
DZ3306-0012DO-2Slide Length: 305mm
-
DZ3306-0014DO-2Slide Length: 356mmChat or Contact us
-
DZ3306-0016DO-2Slide Length: 406mmChat or Contact us
-
DZ3306-0018DO-2Slide Length: 457mm
-
DZ3306-0020DO-2Slide Length: 508mmChat or Contact us
-
DZ3306-0022DO-2Slide Length: 559mmChat or Contact us
-
DZ3306-0024DO-2Slide Length: 610mmChat or Contact us
-
DZ3306-0026DO-2Slide Length: 660mmChat or Contact us
-
DZ3306-0028DO-2Slide Length: 711mmChat or Contact us
