Accuride DZ3307 Drawer Runners and Slides with Lock Out and Front Disconnect Features

Only %1 left
SKU
DZ3307
More Information
Available Load Ratings 55Kg, 58Kg, 61Kg, 64Kg, 66Kg, 67Kg, 68Kg
Slide Lengths 305mm, 356mm, 406mm, 457mm, 508mm, 559mm, 610mm, 660mm, 711mm
Travel Range 330mm, 381mm, 432mm, 483mm, 533mm, 584mm, 635mm, 686mm, 737mm
Features Disconnect, Lock Out
Extension 100% +
Finish Zinc Plate & Blue Passivate (DZ)

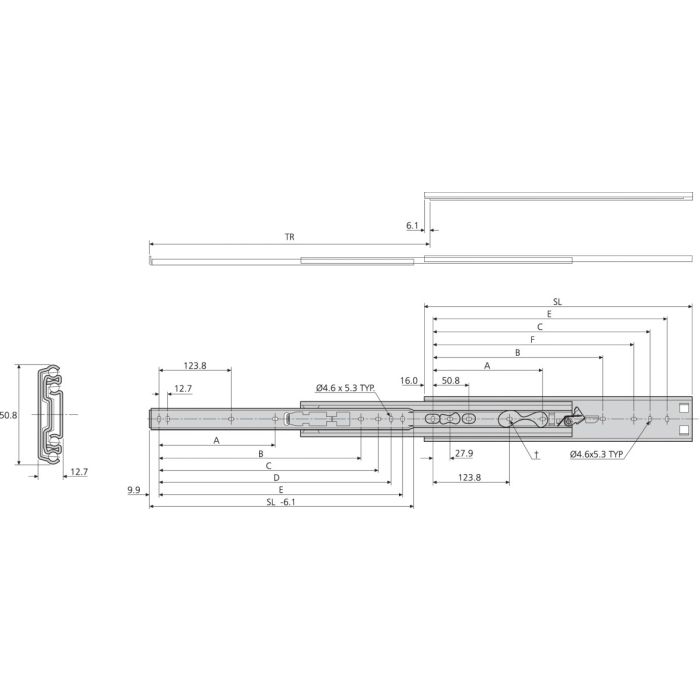

Height 50.8mm
Thickness 12.7mm
Brackets Optional Screw In
Fixings Included Yes
Sold as Pairs
Catalogues
Accuride Datasheets
BASIC PRICE £70.84
All prices exclude VAT

Accuride DZ3307 Drawer Runners and Slides with Lock Out and Front Disconnect Features - Features options are Disconnect, Lock Out, Travel Range options are 330mm, 381mm, 432mm, 483mm, 533mm, 584mm, 635mm, 686mm, 737mm, Slide Lengths options are 305mm, 356mm, 406mm, 457mm, 508mm, 559mm, 610mm, 660mm, 711mm, Available Load Ratings options are 55Kg, 58Kg, 61Kg, 64Kg, 66Kg, 67Kg, 68Kg, Extension options are 100% +, Finish options are Zinc Plate & Blue Passivate (DZ), Height options are 50.8mm, Thickness options are 12.7mm, Brackets options are Optional, Fixings Included options are Male, Sold in pairs

Metrol Springs
DZ3307
/media/catalog/product/3/3/3307_2_-resized.jpg
  • Product code
    Product Description
    Stock Status
  • DZ3307-0012-2
    Slide Length: 305mm, Load Rating: 68Kg, Sold as: Pairs
  • DZ3307-0014-2
    Slide Length: 356mm, Load Rating: 67Kg, Sold as: Pairs
  • DZ3307-0016-2
    Slide Length: 406mm, Load Rating: 67Kg, Sold as: Pairs
  • DZ3307-0018-2
    Slide Length: 457mm, Load Rating: 66Kg, Sold as: Pairs
  • DZ3307-0020-2
    Slide Length: 508mm, Load Rating: 66Kg, Sold as: Pairs
  • DZ3307-0022-2
    Slide Length: 559mm, Load Rating: 64Kg, Sold as: Pairs
  • DZ3307-0024-2
    Slide Length: 610mm, Load Rating: 61Kg, Sold as: Pairs
  • DZ3307-0026-2
    Slide Length: 660mm, Load Rating: 58Kg, Sold as: Pairs
  • DZ3307-0028-2
    Slide Length: 711mm, Load Rating: 55Kg, Sold as: Pairs
  • DZ3307
    Sold as: Pairs
  • DZ63480-4
    Sold as: Kits
Accuride CAD files
  • DZ3307-0012 STEP FILE
  • DZ3307-0014 STEP FILE
  • DZ3307-0016 STEP FILE
  • DZ3307-0018 STEP FILE
  • DZ3307-0020 STEP FILE
  • DZ3307-0022 STEP FILE
  • DZ3307-0024 STEP FILE
  • DZ3307-0026 STEP FILE
  • DZ3307-0028 STEP FILE
